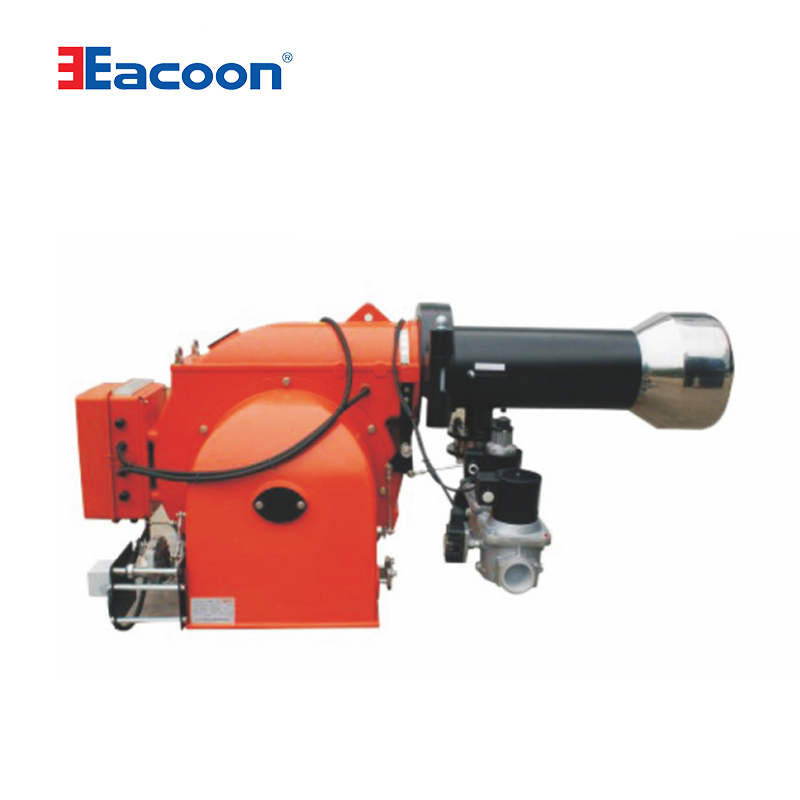

• B-EBB (237~638kW) 40S/40T/60S/60T Series two stage Dual fuel burner
  • B-EBB (237~638kW) 40S/40T/60S/60T Series two stage Dual fuel burner

B-EBTML (534~4135kW) 100T/150T/180T/250T/350T/400T Series two stage Dual fuel burner

B-EBTML 100T/150T/180T/250T/350T/400T series burner output range is 534~4135kW. lt is designed for hot water or superheated water boiler, hot air generator or steamboiler, heat conduction oil furnace.The adjustment way of this series of bumner is "two -stage fire"; The burner is equipped with electronic devices - state display, which canmake comprehensive diagnosis for the burner, including runninghours, number of ignition and fault diagnosis information.
  • B-EBB (237~638kW) 40S/40T/60S/60T Series two stage Dual fuel burner
SPECIFICATION
B-EBTML 100T/150T/180T/250T/350T/400T
Technological performance and structural descriptions


-Alternate methane gas/light oil burner.
-Two stage operation(hight/low flame)Air-gas mixing at blast-pipe and highpressure mechanical atomisation of fuel using nozzle.
-Equipped with one flange and one insulating seal for boiler fastening.
-Sliding boiler coupling flange to adapt tohead protrusion of the various types of boilers.
-Adjustable blast-pipe with stainless steelnozzle and deflector disk in steel.
-Control the air flow of low flame, and hight flame by the servo motor -
-With two three-phase motors, one drives the fan, another drives the oil pump.
-Equipped with power indicator, selector switchof low flame and hight flame, control box ofreset and fault red light indicator.
-Flame presence checked by photoresistanceand ionisation electrode.
-According to the requirement, can offer theblast-pipe more than the standard lenth, caninstall the automatic switching device outsideof the burner.
