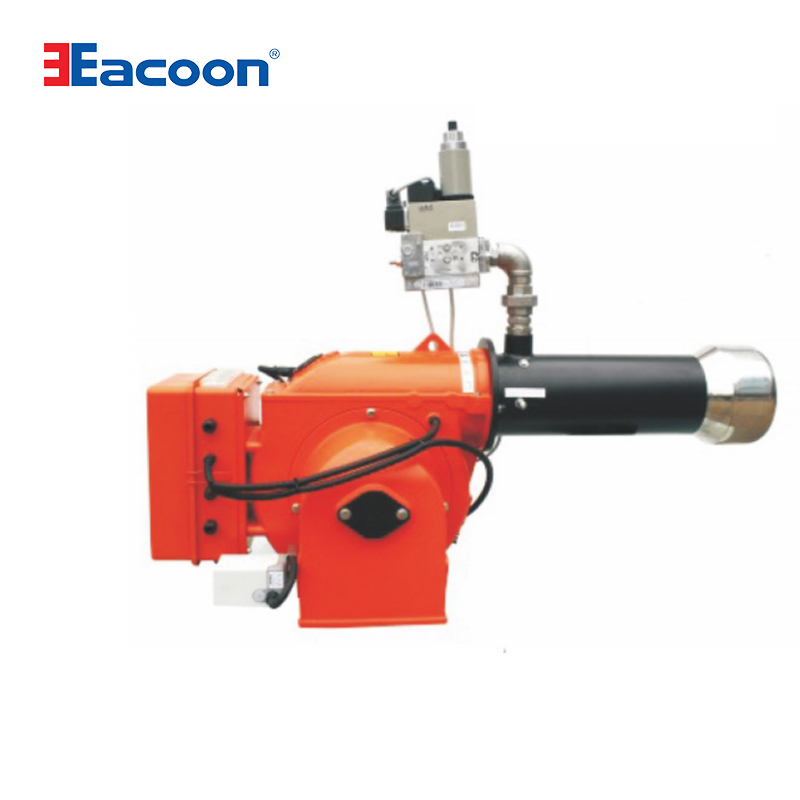

• B- EBT (30-638 kW) single stage 5/10/17/20/30/35/45/60s industrial gas burner
  • B- EBT (30-638 kW) single stage 5/10/17/20/30/35/45/60s industrial gas burner

B- EBTG (80-995 kW) two stage 20/30/35/45/60/85/100 T industrial gas burner

B- EBTG 20/30/35/45/60/85/100T industrial gas burner It is a two-stage commercial model burner with a power range between 80-995KW. It uses the European E brand's ignition and burner control system,and  suitable for small steam generators, incinerator, and commercial kitchen etc.
  • B- EBT (30-638 kW) single stage 5/10/17/20/30/35/45/60s industrial gas burner
SPECIFICATION
EBTG 20T/30T/35T
Technological performance and structural descriptions

-Two-stage progressive output operation(hight/low flame)
-Air-gas mixing at blast-pipe.
-Ability to obtain optimal combustion values byregulating combustion air and blast-pipe.
-Equipped with gas valve to adjust the gas flow oflow flame, and hight flame.
-Equipped with air pressure switch to ensure thecombustion air.
-Sliding boiler coupling flange to adapt to headprotrusion of the various types of boilers.
-Adjustable blast-pipe with stainless steel nozzleand deflector disk in steel.
-Flame presence checked by ionisation electrode.
-Electrical plant protection grade lp40


EBTG 45T/60T
Technological performance and structural descriptions

-Two-stage progressive output operation(hight/low flame)
-Air-gas mixing at blast-pipe.
-Ability to obtain optimal combustion values byregulating combustion air and blast-pipe.
-Equipped with gas valve to adjust the gas flow oflow flame, and hight flame.
-Equipped with air pressure switch to ensure thecombustion air.
-Sliding boiler coupling flange to adapt to headprotrusion of the various types of boilers.
-Adjustable blast-pipe with stainless steel nozzleand deflector disk in steel.
-Flame presence checked by ionisation electrode.
-Electrical plant protection grade lp40



EBTG 85T/100T
Technological performance and structural descriptions

-Two-stage progressive output operation(hight/low flame)
-Air-gas mixing at blast-pipe.
-Ability to obtain optimal combustion values byregulating combustion air and blast-pipe.
-Equipped with gas valve to adjust the gas flow oflow flame, and hight flame.
-Equipped with air pressure switch to ensure thecombustion air.
-Sliding boiler coupling flange to adapt to headprotrusion of the various types of boilers.
-Adjustable blast-pipe with stainless steel nozzleand deflector disk in steel.
-Flame presence checked by ionisation electrode.
-Electrical plant protection grade lp40
