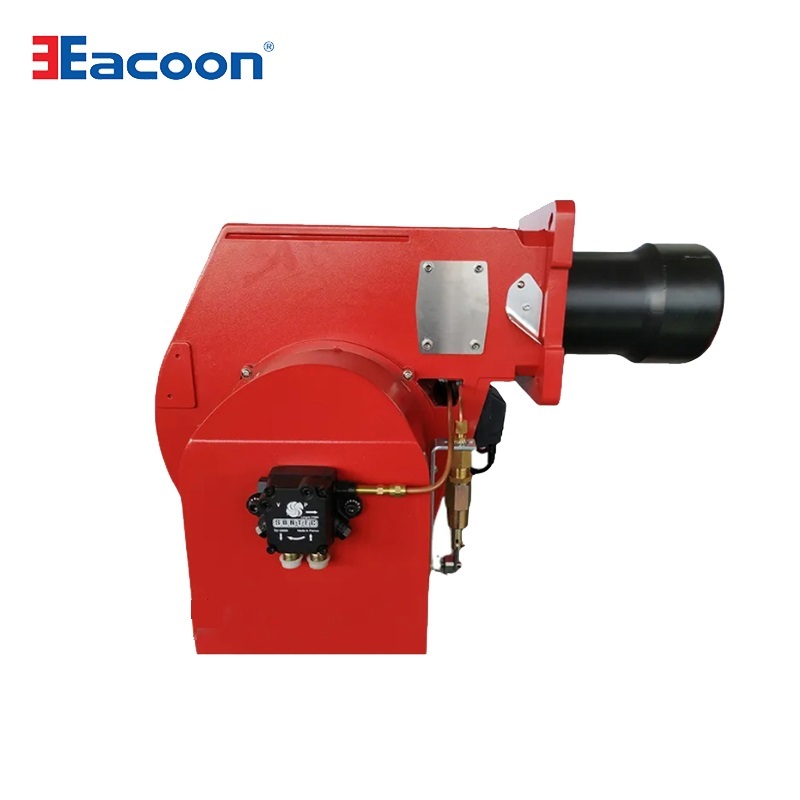

E-MAIOR P 45/60/80/120 industrial light oil burner is a large industrial model burner with a power range between 532-1423kW. It uses the European E brand's ignition and burner control system,suitable for small steam generators, incinerator, commercial kitchen and industrial bolier.
Starting up the burner BURNER START-UP AND ADJUSMENT
Once having installed the burner, check the following items: The burner power feeding and the main line protection fuses The correct length of pipes and that sames are sealed.- The type of fuel, which must be suitable for burner. The connection of boiler's thermostats and all safeties. The motor direction of rotation. The correct calibration of the motor's thermal protection.
When all said conditions are checked and accomplished, it is possible to go on with burner's tests.Power the burner The control box feeds at the same time the ignition transformer and the burner's motor.which will run a prepurging of the combustion chamber for about 12 seconds. At the end of prepurging, thecontrol box opens the fuel pump solenoid valve, the ignition transformer produces a spark and the burnerignites. After a safety interval of 5 seconds and a correct ignition, the control box turns off the ignition tran-sformer In case of faulty ignition, the control box switches the burner into safety condition within 10 secs.In such a case, the manual rearming of the burner shall not take place before 30 seconds are elapsed from theburner's safety shutdown. The fuel pump feeding pressure, must keep around 12 bar Note: With preheatedversion, the burner runs a preheating of the combustion head for about 1 minute. In such a case, at the boiler's thermostats make, the ignition signal shall be done by the thermostat mounted on the preheater itself.
Starting up the burner
